電気工事用電線管ラック選定:WireWay

Features 電気工事用電線管ラック選定:WireWay

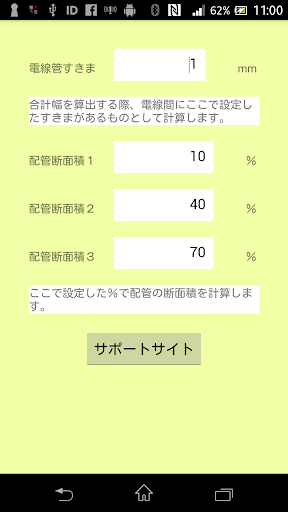

The wire tube and rack size to be used in the electrical workThis selection tools.■ How to useThis application consists of three screens.Light blue screen → wire selection screenGreen screen → piping selection screenYellow screen → Setup screenMovement between each screen can be done on the screen flick.Registration of the electric wire (light blue screen)Wire type on the summary button, size,        When you operate a number of drum picker selection after the summary buttonWire on the list total cross-sectional area is calculated automatically        It will be.→ was registered in the list wire with a long tap           You can be deleted.→ total width is, at the time of arranging the wires that were registered in the transverse           Dimensions.The inner dimensions of the wire if the rack of greater than or equal to the sum width           It can be placed in a single stage.Selection of conduit (green screen)In drum picker a pipe type and size that you want to use         The cross-sectional area of ​​the pipe combined to configure and select         It shows.Suitable compares the pipe cross-sectional area required cross-sectional area         Please select the pipe size.Space factor is, for the piping of the currently selected         The percentage of the required cross-sectional area.Setting the automatic calculation (yellow screen)You can set the coefficient at the time of automatic calculation.When calculating the electric wire between gap = total width,                            Set here between the wire and the wireAnd then calculated as there is a gap.Pipe cross-sectional area 1-3 = a rate set here                                    The cross-sectional area to calculate.Ratio to match the ease of use                                    Please set.■ NotesEven if from the calculated numerical value unforeseen circumstances has occurredUs, please use on the understanding does not assume any responsibility.◆ bug reports and questions, contact us thank you in the comments.
